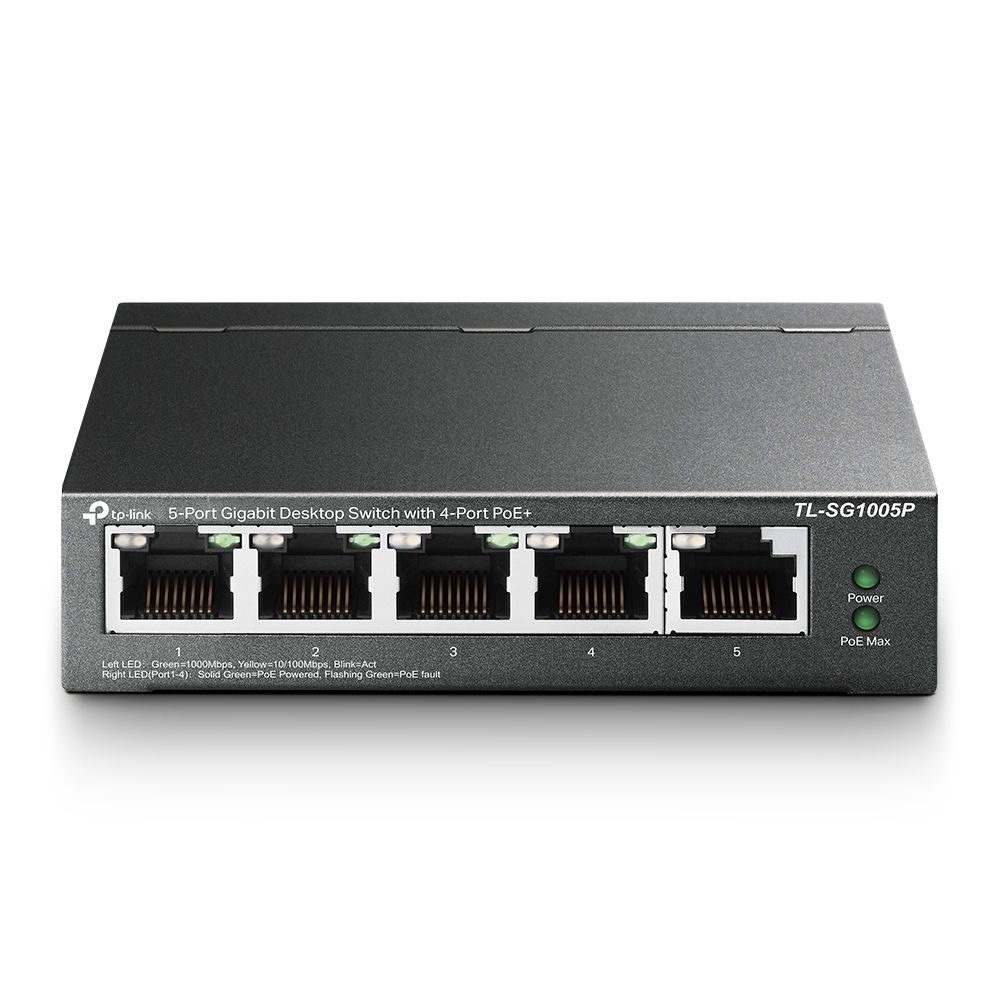

TP-LINK SWITCH DI RETE 5P 10/100/1000 4P POE TL-SG1005P

5 porte RJ45 10/100/1000Mbps, di cui 4 con supporto PoE per alimentazione elettrica e trasferimento dati su un singolo cavo ethernet

Compatibile con i PDs IEEE 802.3af

QoS 802.1p/DSCP per un traffico dati più fluido

La singola porta con PoE supporta fino a 15.4W

Tutte le porte PoE insieme raggiungono fino a 56W

Plug & Play - nessuna configurazione necessaria

Interfaccia:

5 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX

Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)

Numero ventole :

Fanless

Alimentatore esterno :

External Power Adapter(Output: 48VDC / 1.25A)

Porte PoE :

Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 56W

Backbound bandwidth :

10Gbps

Tabella ARP :

Dimensioni ( L x P x A ) :

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

Max. Power Consumption :

3.95W(220/50Hz. no PD connected) 64.44W(220/50Hz. with 55W PD connected)

Max. Heat Dissipation :

13.48BTU/h(no PD connected) 219.87BTU/h(with 56W PD connected)

Caratteristiche avanzate :

Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping

Metodo di trasmissione :

Store-And-Forward

Certificazione :

FCC, CE, RoHS

Contenuto della confezione :

TL-SG1005P, Power Adapter, Installation Guide

Consumo :

4.26 watts (max. no PD connected) 63.31 watts (max. with 56w PD connected)

Consumo:

4.26 watts (max. no PD connected) 63.31 watts (max. with 56w PD connected)

Ambiente:

Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing
