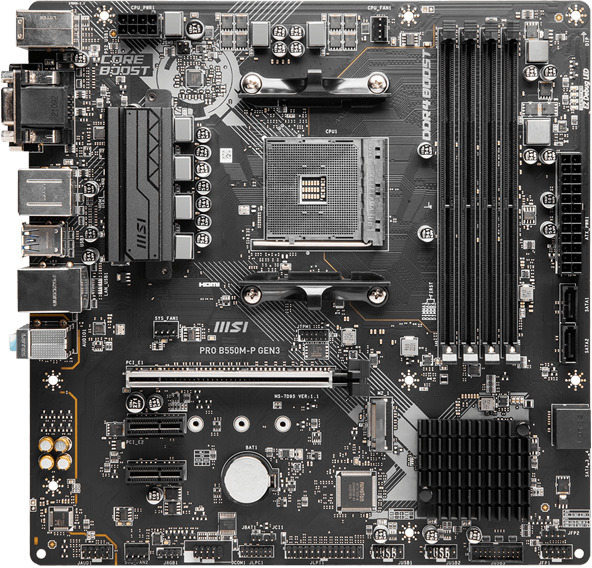

MSI SCHEDA MADRE B550M-P PRO GEN3 4X DDR4 VGA/DVI-D/HDMI SOCKET AM4

La serie PRO aiuta gli utenti a lavorare in modo più intelligente offrendo un'esperienza efficiente e produttiva. Dotate di funzionalità stabili e assemblaggio di alta qualità, le schede madri della serie PRO offrono non solo flussi di lavoro professionali ottimizzati, ma anche meno problemi e longevità.

CPU:

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

CHIPSET:

AMD® B550 Chipset

MEMORY:

4x DDR4 memory slots, supporting up to 128GB* 1 Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE 1DPC 1R max speed 4400 MHz 1DPC 2R max speed 3733 MHz 2DPC 1R max speed 3866 MHz 2DPC 2R max speed 3466 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory

EXPANSION SLOT:

1x PCIe 3.0 x16 slot (From CPU) 2x PCIe 3.0 x1 slots (From AMD B550 chipset)

ONBOARD GRAPHICS:

1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1 1x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1 2 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1 2 Maximum shared memory of 16 GB

SATA PORTS:

4x SATA 6Gb/s ports (From AMD B550 Chipset) 1

M.2 SSD SLOTS:

1x M.2 slot (Key M) M2_1 slot (From CPU) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices

RAID:

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

AUDIO:

Realtek® ALC897 Codec 7.1-Channel High Definition Audio

LAN:

1x Realtek® RTL8111H 1Gbps LAN controller

POWER CONNECTORS:

1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector

INTERNAL USB CONNECTORS:

1x USB 3.2 Gen 1 5Gbps connectors (From AMD B550 Chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From AMD B550 Chipset) Supports additional 4 USB 2.0 ports

FAN CONNECTORS:

1x 4-pin CPU fan connector 2x 4-pin system fan connectors

SYSTEM CONNECTORS:

1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Parallel port connector 1x TPM module connector

JUMPERS:

1x Clear CMOS jumper

LED FEATURES:

1x 4-pin RGB LED connector 4x EZ Debug LED

BACK PANEL CONNECTORS:

Keyboard / Mouse VGA USB 2.0 USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 DVI-D HDMI USB 3.2 Gen 1 5Gbps Type-A

I/O CONTROLLER:

NUVOTON NCT6795D-M Controller Chip

HARDWARE MONITOR:

CPU/ System/ Chipset temperature detection CPU/ System fan speed detection CPU/ System fan speed control

FORM FACTOR:

m-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
