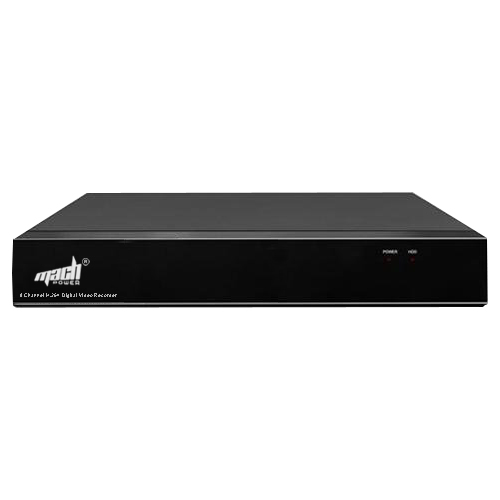

MACH POWER DVR REGISTRATORE VIDEO IBRIDO (HVR) PER SISTEMI DI VIDEOSORVEGLIANZA CON TELECAMERE IP E ANALOGICHE 4 CANALI ANALOGICI / 9 CANALI IP (4CH SE MPX), 1XVGA / 2XBNC / 1XHDMI, ALLARMI I/O, AUDIO I/O, PTZ RS485, 2X HDD SATA, LAN RJ45, VS-HVR4-037

Quantità Disponibile: 3

Magazzino Principale: 2

Magazzino Catania: 1

Quantità in Arrivo: 0

Sku: 5785

Recensisci per primo questo prodotto

Accedi per visualizzare il prezzo

Categorie :DVR RECORDER, VIDEOSORVEGLIANZA

HVR 4CH 1XVGA,2XBNC,1XHDMI, ALARM, AUDIO, RS485, 2XHDD,R

MODEL :
VS-HVR4-037
Structure :
Hisilicon Hi3521
Operating System :
Embedded LINUX
System resources :
Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Operations interface :
16 bit real color GUI interface with mouse support
Video compression :
H.264 (High Profile)
Audio compression :
G711a 16Kbps
Recording Mode :
Manual, alarm, motion detection, planned
Display mode :
Monitor-D1; VGA-HD; HDMI-HD
Playback quality :
1080P/960H/D1/HD1/CIF/QCIF
Motion Detection :
192 (16 x12) areas for each channel; multi-level setting
Protocols :
TCP/IP, HTTP, ICMP, RTSP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, UPnP, ARSP
Analog video inputs :
4 x D1/960H
IP video inputs :
9 x D1 - 2 x 1080P - 1 x 1080P+1 x 720P+2 x D1 - 1 x 720P+7 x D1 - 4 x 720P - 8 x 960H
IP inputs / Analog combined :
1 x 1080P+1 x 720P(IP) + 2 x D1(Analog)
HDMI output :
1x (1024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1440x900/60Hz,1920x1080/60Hz)
VGA output :
1x (1024x768/60Hz,1280x720/60Hz,1280x1024/60Hz,1440x900/60Hz,1920x1080/60Hz)
BNC output :
2 x (1.0Vp-p, 75O)
SPOT output :
Yes
Max resolution rec :
4 x 960H, Max 4ch playback (4 x 960H@25fps)
Frame Rate max rec :
30
Audio input :
4 x RCA(200-2800mV,30KO)
Audio Output :
1 x RCA
Alarm input :
4ch
Alarm output :
1ch
USB :
2
LAN :
1 RJ45 10/100M
PTZ :
1 x RS485,1 x RS232 support protocol mPTZ
Space in recording :
Video CIF 4~5G/dayfor each channel, D1 16~20G/day for each channel, Audio
Video saving :
local HDD, Network
Backup mode :
Network backup, external HDD, USB, SATA
Playback speed :
Yes
CMS :
Yes
External USB HDD :
Yes - Max 1 (3Tb)
e-mail alarm :
Yes
Web browser :
Yes
Remote setup :
No
MID display :
Yes
DDNS / CLOUD :
3G/WiFi (USB device)
Wireless interfaces :
DC12/4A =10W MAX (without HDD)
Power supply :
370 x 315 x 55mm
Dimension / Weight :
1500g
