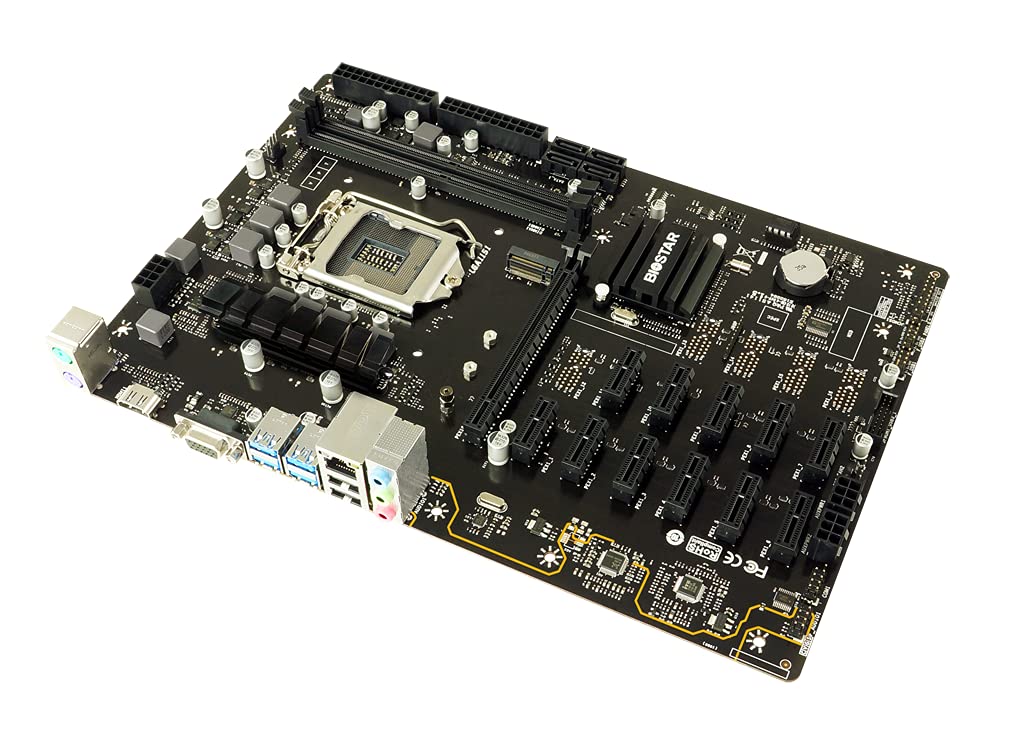

BIOSTAR SCHEDA MADRE TB360-BTC PRO 2.0 2X DDR4 VGA/HDMI SOCKET 1151

Supports 9

& 8

Generation Intel Core™ Processor

Intel B360 single chip architecture

Support 2-DIMM DDR4-1866/2133/2400/2666 up to 32G maximum capacity

Support 12 x PCIe 3.0 slots

Support M.2 (6Gb/s) Connector

Support HDMI® Connector

Chipset:

Intel B360

CPU SUPPORT:

9th Gen Intel Core i9 LGA 1151 Processor Socket 1151 for 9th & 8th Intel Core i7 / i5 / i3 / Pentium / Celeron processor * 8th Generation Intel Core™ Processor Family only support 300-Series. * Please refer to www.biostar.com.tw for CPU support list.

MEMORY:

Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666 2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory Each DIMM supports non-ECC 4/8/16GB DDR4 module * Please refer to www.biostar.com.tw for Memory support list.

INTEGRATED VIDEO:

By CPU model Supports DX12 Supports HDCP

STORAGE:

4 x SATA III Connectors (6Gb/s) 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module Supports SATA III (6Gb/s) SSD * Specifications vary by CPU types

LAN:

Realtek LAN Chip 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

AUDIO CODEC:

ALC887 7.1 Channels, High Definition Audio

USB:

6 x USB 3.1(Gen1) ports (4 on rear I/Os and 2 via internal header) 6 x USB 2.0 ports (2 on rear I/Os and 4 via internal header)

EXPANSION SLOT:

11 x PCIe 3.0 x1 Slot 1 x PCIe 3.0 x16 Slot * Maximum VGA cards mining support are depending on VGA Driver or mining software. * Specifications vary by CPU types

REAR I/O:

1 x PS/2 Mouse 1 x PS/2 Keyboard 1 x VGA Port 1 x HDMI® Port 1 x LAN port 2 x USB 2.0 Ports 4 x USB 3.1(Gen1) Ports 3 x Audio Jack

INTERNAL I/O:

4 x SATA III Connectors (6Gb/s) 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.1(Gen1) Header (each header supports 2 USB 3.1(Gen1) ports) 1 x 8-Pin Power Connector 2 x 24-Pin Power Connectors 2 x 6-Pin PCIe Power Connectors 1 x CPU Fan Connector 2 x System Fan Connectors 1 x Front Panel Header 1 x Front Audio Header 1 x COM Serial Header 1 x Clear CMOS Header

H/W MONITORING:

CPU / System Temperature Monitoring CPU / System Fan Monitoring System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring

DIMENSION:

ATX Form Factor Dimension: 29.5cm x 21.0cm ( W x L )

OS SUPPORT:

Supports Windows 10(64bit) / 11(64bit) ?Biostar reserves the right to add or remove support for any OS with or without notice.

BUNDLE SOFTWARE:

BullGuard

ACCESSORIES:

2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual

FEATURES:

PCI-E Slot Detection BIOS Boot Screen
