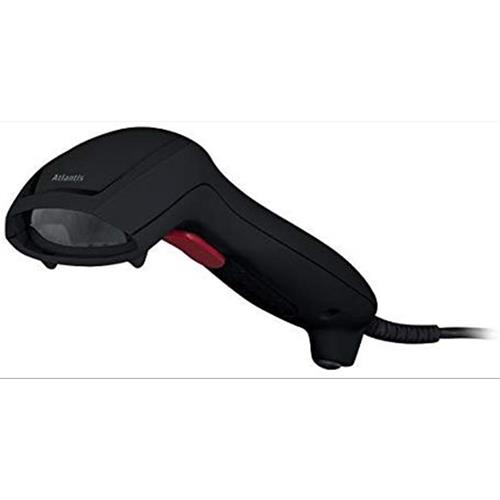

ATLANTIS BARCODE SCANNER USB A08-LN1100

Lettore codici a barre linear image

- Sensore ottico 2500 pixel

- Risoluzione 4 mil

- Velocita' di 100 scansioni al secondo

- Profondità di campo 200 mm

- Resistenza a caduta 1.5m

- Connessione USB

Scanbar LN1100 integra la tecnologia Linear image con un sensore ottico da 2500pixel. Prodotto semiprofessionale adatto sia nel mondo o?ce che retail. Supporta tutti i barcode compresi GS1 Databar e Italian Parmacy.

Lettore Barcode Atlantis Scanbar LN1100: Tecnologia ottica 2500pixel. Risoluzione 4mils. Profondita' di campo 2000mm. Resitenza caduta 1,5m. Velocita' di scansione 100 scan/sec. Collegamento USB.

Optical sensor:

Linear image2500 pixels

Light source:

Visible Red light 632nm LED

Resolution:

4mil/0.1mm@PCS90%, Code39

Depth of Field:

200mm(20mil)/0,5mm. PCS90%

Width of Field:

40mm@Contact, 10mil/0.25mm, PCS90%

Processor type:

32 bits

Scan Rate:

100 scans per second ±10%

Pcs:

45%

Voltage:

+5V±5%

Scanning currents:

242mA

Standby currents:

58mA

Power on Consumption:

250mA

Operating temperature:

0°C to 50°C / 32°F to 122°F

Storage temperature:

-20°C to 70°C / -4°F to 158°F

Light leve:

10,000 Lux. Max

Operating humidity:

20%~ 95% non-condensing

Storage humidity:

20% ~ 95% non-condensing

Shock resistance:

1.5m drops

Weight:

LN1100 scanner only (90g), Cable- USB (60g)

Dimensions:

168mm(L)x55mm(W)x65mm(H)

Housing Material:

ABS plastic

Cable Lenght:

1500mm

Supported barcode:

All UPC/EAN/JAN Code 39 Code 128 CODABAR/NW7 Interleave 25 (Readable) All UPC/EAN/JAN EAN 128 Code Code 39 Code 39 Full ASCII Code32/Italian Pharmacy Code 128 CODABAR/NW7 Interleave 25 Industrial 25 MSI/PLESSEY Telepen Code 93 China Postage GS1 DataBar
