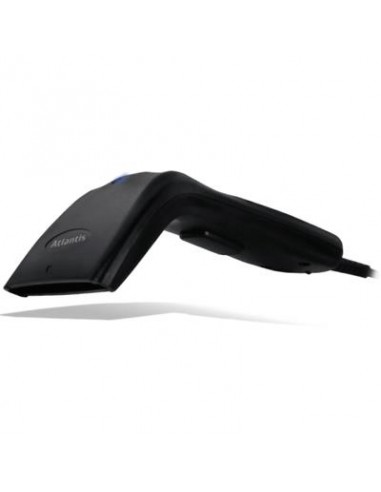

ATLANTIS BARCODE SCANNER CONTACT READER USB A08-C100

Contact Reader

- Lettore codice a barre a contatto

- Sensore ottico CCD

- Risoluzione 4 mil

- Velocita' di 120 scansioni al secondo

- Profondità di campo 60 mm

- Resistenza a caduta 1.2m

- Connessione USB/seriale a seconda del modello

A08-C100

- Optical sensor: CMOS sensor

- Light source: Visible Red light 632nm LED

- Resolution: 4mil/0.1mm@PCS90%

- Depth of Field: 60mm(20mil)/0,5mm. PCS90%

- Processor type: 32 bits

- Scan Rate: 120 scans per second ±10%

- Pcs: 30%

- Voltage: +5V±5%

- Scanning currents:125mA ± 10%

- Standby currents: 70mA ± 10%

- Power on Consumption: 150mA ± 10%

- Operating temperature: 0°C to 50°C / 32°F to 122°F

- Storage temperature: -20°C to 70°C / -4°F to 158°F

- Light level: 5,000 Lux. Max Fluorescent lamp

- Operating humidity: 20%~ 95% non-condensing

- Storage humidity: 20% ~ 95% non-condensing

- Shock resistance: 1.2m drops

- Weight: C100 scanner only (120g), Cable USB (60g), RS232 (100g), KBW (80g)

- Dimensions: 166.42mm(L)x77.81mm(W)x78.06mm(H)

- Housing Material: ABS plastic

- Cable Lenght: 1500mm

Supported barcode:

All UPC/EAN/JAN Code 39 Code 128 CODABAR/NW7 Interleave 25 (Readable) All UPC/EAN/JAN EAN 128 Code Code 39 Code 39 Full ASCII Code32/Italian Pharmacy Code 128 CODABAR/NW7 Interleave 25 Industrial 25 Matrix 25 MSI/PLESSEY Telepen Code 93 Code 11 China Postage Code 26 LCD25 GS1 DataBar Omnidirectional&Stacked GS1 DataBar Limited GS1 DataBar Expanded&Stacked
