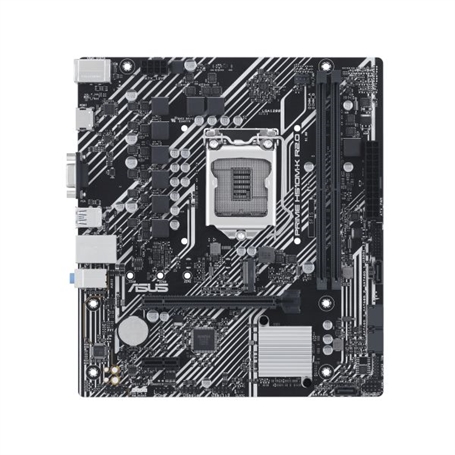

ASUS SCHEDA MADRE PRIME H510M-K REV 2.0 2X DDR4 VGA/HDMI/DISPLAY-PORT SOCKET 1200

Quantità Disponibile: 24

Magazzino Principale: 23

Magazzino Catania: 1

Quantità in Arrivo: 0

Sku: 16935

Recensisci per primo questo prodotto

MB ASUS PRIME H510M-K R2.0 H470 LGA1200 2XDDR4DC-3200O.C. VGA HDMI 1XPCIE4.0X16 4XSATA3 M.2 GBLAN USB3.2 MATX 90MB1E80-M0EAY0

CPU:
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset:
Intel® H470 Chipset
Memory:
2 x DIMM, Max. 64GB, DDR4 3200(OC)/ 3000(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Graphics:
1 x VGA port 1 x HDMI™ port
Expansion Slots:
Intel® 11th & 10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot - Intel® 11th Gen processors support PCIe 4.0 x16 - Intel® 10th Gen processors support PCIe 3.0 x16 Intel® H470 Chipset: 1 x PCIe 3.0 x1 slot
Storage:
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel® H470 Chipset: M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Ethernet:
1 x Realtek 1Gb Ethernet
USB:
Rear USB (Total 6 ports): - 4 x USB 3.2 Gen 1 ports (4 x Type-A) - 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 6 ports): - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features: - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Back Panel I/O Ports:
4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x VGA port 1 x HDMI™ port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors:
Fan and Cooling related: - 1 x 4-pin CPU Fan header - 1 x 4-pin Chassis Fan header Power related: - 1 x 24-pin Main Power connector - 1 x 8-pin +12V Power connector Storage related: - 1 x M.2 slot (Key M) - 4 x SATA 6Gb/s ports USB: - 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous: - 1 x RGB header - 1 x Clear CMOS header - 1 x COM Port header - 1 x Front Panel Audio header (AAFP) - 1 x S/PDIF Out header - 1 x Speaker header - 1 x SPI TPM header (14-1pin) - 1 x 10-1 pin System Panel header
BIOS:
128 Mb Flash ROM, UEFI AMI BIOS
Accessories:
Cables: - 2 x SATA 6Gb/s cables Miscellaneous: - 1 x I/O Shield - 1 x M.2 Anchor Documentation: - 1 x User guide
Operating System:
Windows® 10 64-bit
